SITB1605828C
MBH125C 58.65/1 PAM 28/250 BEVEL HELICAL G/BOX
SITB1605828C

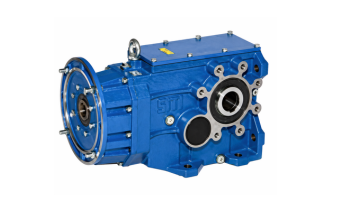

The MBH125C from SITI is a heavy-frame bevel-helical gearmotor combining a spiral-bevel stage with a helical reduction stage, built on a 125 mm centre-distance housing and configured with coupled output (hollow bore) for heavy-duty applications.
- 58.65/1 reduction — deep ratio delivering strong torque multiplication for slow-speed, high-load conveying, mixing or winching duty
- Input: PAM 28/250 flange — direct mount for IEC 100/112B5 (3–4 kW)
- Hollow-bore output for shaft-mounted installation on the driven machine — removes the need for a separate coupling and reduces drive-train length
- Bevel-helical arrangement delivers ~94% efficiency per stage — substantially higher than worm designs at the same ratio, and runs cooler under continuous duty
- Cast-iron housing and case-hardened helical/bevel gear set for long service life in heavy-duty applications
- Made in Italy by SITI S.p.A.
$3,660.68
