SITB1607638MS
MBH125MS 72.65/1 PAM 38/300 BEVEL HELICAL G/BOX
SITB1607638MS

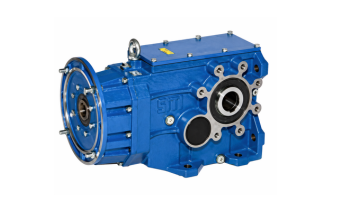

The MBH125MS from SITI is a heavy-frame bevel-helical gearmotor combining a spiral-bevel stage with a helical reduction stage, built on a 125 mm centre-distance housing and configured with solid male-shaft output (RH) for direct coupling or sprocket/pulley mounting for heavy-duty applications.
- 72.65/1 reduction — deep ratio delivering strong torque multiplication for slow-speed, high-load conveying, mixing or winching duty
- Input: PAM 38/300 flange — direct mount for IEC 132B5 (5.5–7.5 kW)
- Solid RH male-shaft output (MS variant) for connection via coupling, sprocket or pulley — suited to installations where the driven shaft cannot be sleeved
- Bevel-helical arrangement delivers ~94% efficiency per stage — substantially higher than worm designs at the same ratio, and runs cooler under continuous duty
- Cast-iron housing and case-hardened helical/bevel gear set for long service life in heavy-duty applications
- Made in Italy by SITI S.p.A.
$3,801.94
