SITB2010342GCMS
MBHGC160MS 103.5/1 PAM 42/350 BEVEL HELICAL G/BOX
SITB2010342GCMS

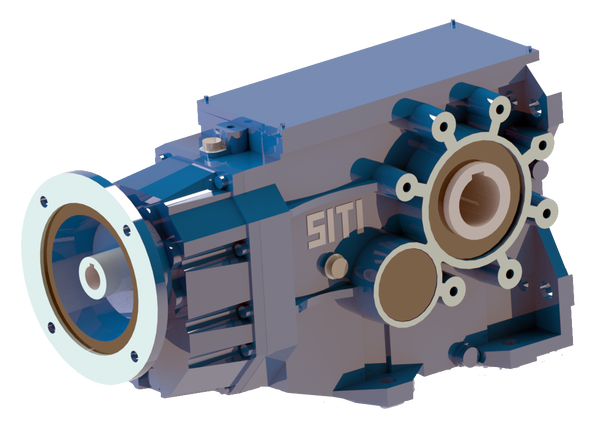

The MBHGC160MS from SITI at 103.5:1 is a modular-shaft 4-stage bevel-helical gearbox in a size-160 cast-iron housing — a very deep reduction producing very low output speeds with extremely high torque. PAM 42/350 motor flange. Suited to slow-running heavy drives such as mills and large mixers.
- Right-angle bevel-helical, 4-stage MS modular-shaft variant
- 103.5:1 ratio — very deep reduction for slow, high-torque drives
- Size 160 cast-iron housing, PAM 42/350 motor flange
- Efficiency above 90% in both torque directions
- Made in Italy by SITI S.p.A.
$8,590.26
