SITHN0401000

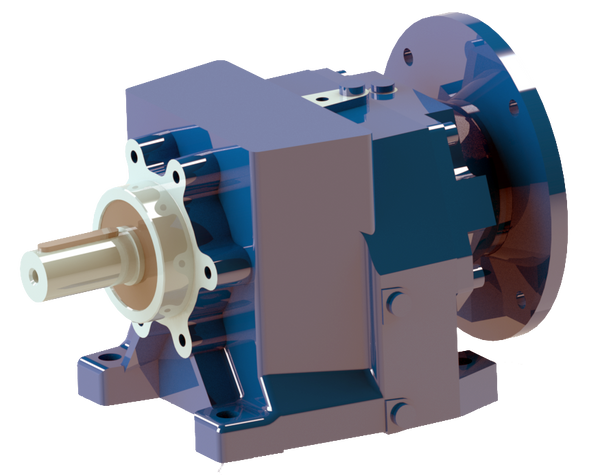

NHL20/2/10.67 INLINE HELICAL GEARBOX
SITHN0401000
The NHL20/2/10.67 from SITI is an ultra-compact inline helical gearbox built on a 20 mm centre-distance housing, delivering high-efficiency speed reduction for light automation and small conveyors.
- 10.67/1 ratio — low-to-mid reduction balancing speed retention with useful torque gain
- 2-stage inline helical reduction — axially aligned input and output shafts for compact drive-train layouts
- Input shaft (non-motorised NHL variant) — couples to any motor, belt drive or mechanical drive source
- Foot-mount housing with optional B5/B14 output flange — universal installation flexibility
- Helical gear train delivers ~96–98% efficiency per stage — runs cool under continuous duty and significantly outperforms worm designs at the same ratio
- Case-hardened helical gears in a cast-iron housing for long service life in light automation and small conveyors
- Made in Italy by SITI S.p.A.
$524.68
