SITHN1901128
MNHL30/02/11.43 28/250 INLINE HELICAL GBOX
SITHN1901128

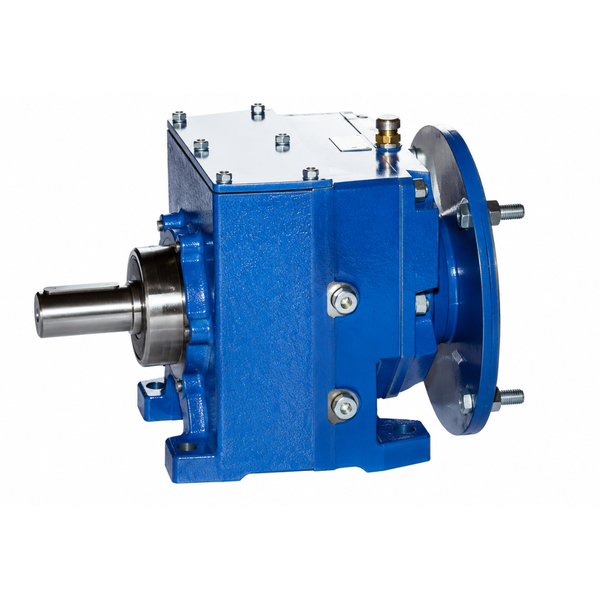

The MNHL30/02/11.43 from SITI is a compact inline helical gearmotor built on a 30 mm centre-distance housing, delivering high-efficiency speed reduction for general light-to-mid industrial duty.
- 11.43/1 ratio — low-to-mid reduction balancing speed retention with useful torque gain
- 2-stage inline helical reduction — axially aligned input and output shafts for compact drive-train layouts
- PAM input flange for direct IEC motor mounting
- Foot-mount housing with optional B5/B14 output flange — universal installation flexibility
- Helical gear train delivers ~96–98% efficiency per stage — runs cool under continuous duty and significantly outperforms worm designs at the same ratio
- Case-hardened helical gears in a cast-iron housing for long service life in general light-to-mid industrial duty
- Made in Italy by SITI S.p.A.
$1,051.00
