SITHN1903819
MNHL30/2/38.6 PAM 19/200 INLINE HELICAL G/BOX
SITHN1903819

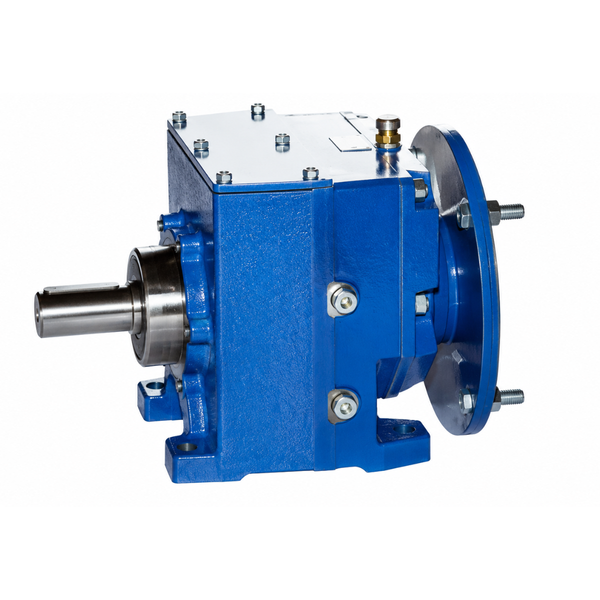

The MNHL30/2/38.6 from SITI is a compact inline helical gearmotor built on a 30 mm centre-distance housing, delivering high-efficiency speed reduction for general light-to-mid industrial duty.
- 38.6/1 ratio — mid-range reduction combining solid torque multiplication with practical output speed
- 2-stage inline helical reduction — axially aligned input and output shafts for compact drive-train layouts
- Input: PAM 19/200 flange — direct-mount for IEC 80B5 (0.75–1.1 kW)
- Foot-mount housing with optional B5/B14 output flange — universal installation flexibility
- Helical gear train delivers ~96–98% efficiency per stage — runs cool under continuous duty and significantly outperforms worm designs at the same ratio
- Case-hardened helical gears in a cast-iron housing for long service life in general light-to-mid industrial duty
- Made in Italy by SITI S.p.A.
$797.54
