SITHN2205714
MNHL30/3/57.9 PAM 14/160 INLINE HELICAL G/BOX
SITHN2205714

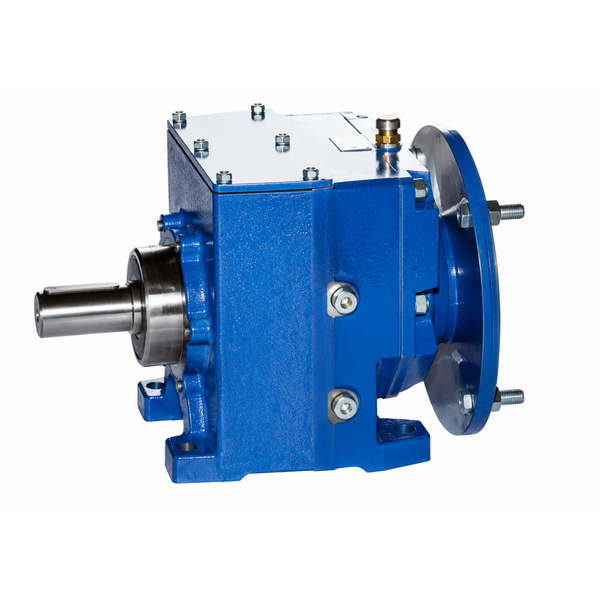

The MNHL30/3/57.9 from SITI is a compact inline helical gearmotor built on a 30 mm centre-distance housing, delivering high-efficiency speed reduction for general light-to-mid industrial duty.
- 57.9/1 ratio — mid-range reduction combining solid torque multiplication with practical output speed
- 3-stage inline helical reduction — axially aligned input and output shafts for compact drive-train layouts
- Input: PAM 14/160 flange — direct-mount for IEC 71B14 (0.37–0.55 kW)
- Foot-mount housing with optional B5/B14 output flange — universal installation flexibility
- Helical gear train delivers ~96–98% efficiency per stage — runs cool under continuous duty and significantly outperforms worm designs at the same ratio
- Case-hardened helical gears in a cast-iron housing for long service life in general light-to-mid industrial duty
- Made in Italy by SITI S.p.A.
$988.84
