SITHN2500438
MNHL40/2/4.53 PAM 38/300 INLINE HELICAL G/BOX
SITHN2500438

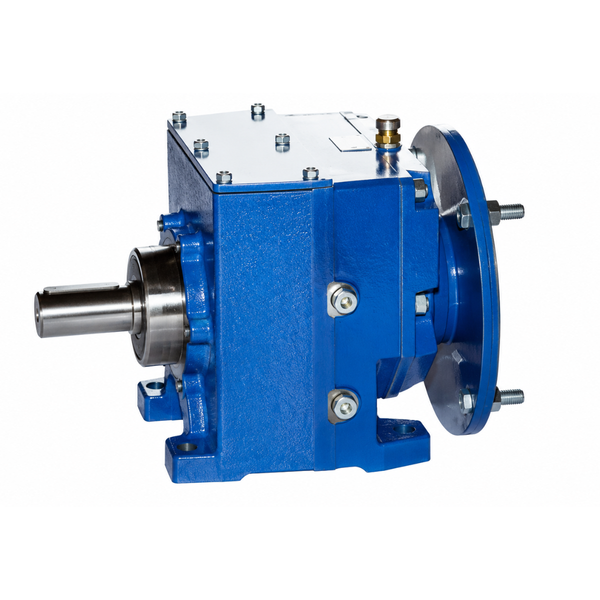

The MNHL40/2/4.53 from SITI is a mid-size inline helical gearmotor built on a 40 mm centre-distance housing, delivering high-efficiency speed reduction for general industrial duty.
- 4.53/1 ratio — very low reduction preserving output speed, optimised for high-speed belt and conveyor drives
- 2-stage inline helical reduction — axially aligned input and output shafts for compact drive-train layouts
- Input: PAM 38/300 flange — direct-mount for IEC 132B5 (5.5–7.5 kW)
- Foot-mount housing with optional B5/B14 output flange — universal installation flexibility
- Helical gear train delivers ~96–98% efficiency per stage — runs cool under continuous duty and significantly outperforms worm designs at the same ratio
- Case-hardened helical gears in a cast-iron housing for long service life in general industrial duty
- Made in Italy by SITI S.p.A.
$1,576.48
