SITHN3702538
MNHL60/2/25.5 PAM 38/300 INLINE HELICAL G/BOX
SITHN3702538

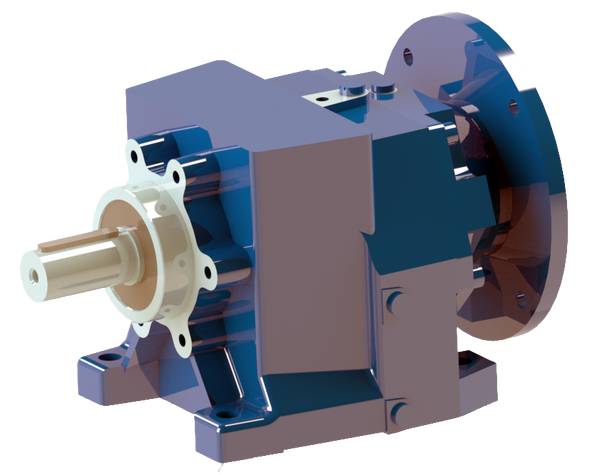

The MNHL60/2/25.5 from SITI is a larger-frame inline helical gearmotor built on a 60 mm centre-distance housing, delivering high-efficiency speed reduction for heavier industrial duty.
- 25.5/1 ratio — low-to-mid reduction balancing speed retention with useful torque gain
- 2-stage inline helical reduction — axially aligned input and output shafts for compact drive-train layouts
- Input: PAM 38/300 flange — direct-mount for IEC 132B5 (5.5–7.5 kW)
- Foot-mount housing with optional B5/B14 output flange — universal installation flexibility
- Helical gear train delivers ~96–98% efficiency per stage — runs cool under continuous duty and significantly outperforms worm designs at the same ratio
- Case-hardened helical gears in a cast-iron housing for long service life in heavier industrial duty
- Made in Italy by SITI S.p.A.
$3,633.20
