SITHN4007628
MNHL60/3/76.1 PAM 28/250 INLINE HELICAL GEARBOX
SITHN4007628

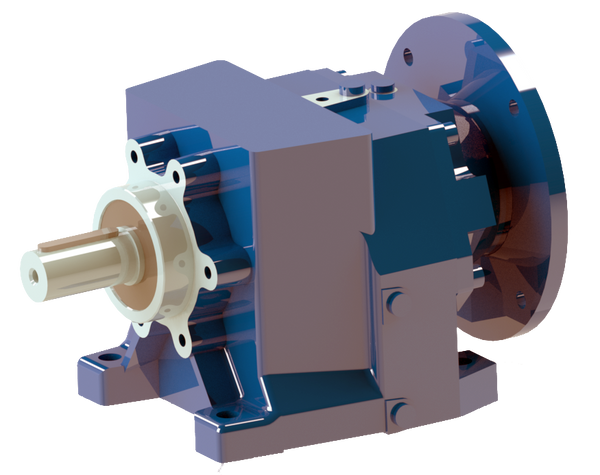

The MNHL60/3/76.1 from SITI is a larger-frame inline helical gearmotor built on a 60 mm centre-distance housing, delivering high-efficiency speed reduction for heavier industrial duty.
- 76.1/1 ratio — mid-range reduction combining solid torque multiplication with practical output speed
- 3-stage inline helical reduction — axially aligned input and output shafts for compact drive-train layouts
- Input: PAM 28/250 flange — direct-mount for IEC 100/112B5 (3–4 kW)
- Foot-mount housing with optional B5/B14 output flange — universal installation flexibility
- Helical gear train delivers ~96–98% efficiency per stage — runs cool under continuous duty and significantly outperforms worm designs at the same ratio
- Case-hardened helical gears in a cast-iron housing for long service life in heavier industrial duty
- Made in Italy by SITI S.p.A.
$4,145.70
