SITHN4028724
MNHL60/3/287.05 PAM 24/200 INLINE HELICAL GEARBOX
SITHN4028724

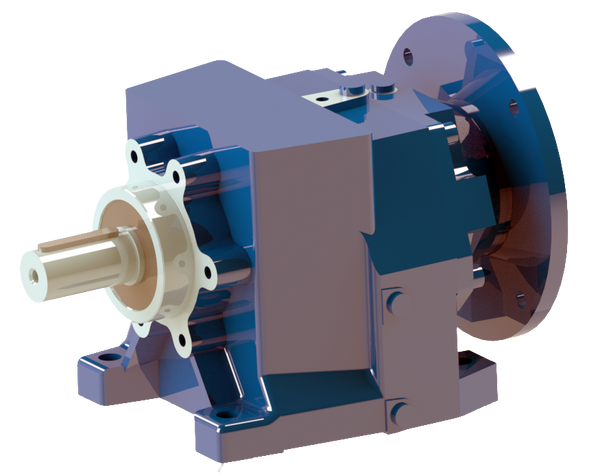

The MNHL60/3/287.05 from SITI is a larger-frame inline helical gearmotor built on a 60 mm centre-distance housing, delivering high-efficiency speed reduction for heavier industrial duty.
- 287.05/1 ratio — very deep reduction producing very high output torque and very slow shaft speed for winch, lift or precision slow-turn duty
- 3-stage inline helical reduction — axially aligned input and output shafts for compact drive-train layouts
- Input: PAM 24/200 flange — direct-mount for IEC 90B5 (1.5–2.2 kW)
- Foot-mount housing with optional B5/B14 output flange — universal installation flexibility
- Helical gear train delivers ~96–98% efficiency per stage — runs cool under continuous duty and significantly outperforms worm designs at the same ratio
- Case-hardened helical gears in a cast-iron housing for long service life in heavier industrial duty
- Made in Italy by SITI S.p.A.
$4,145.70
