SMPO 4B
TYPE4 ACCESS CURTAIN W/MUTE 910MM
SMPO 4B
In stock

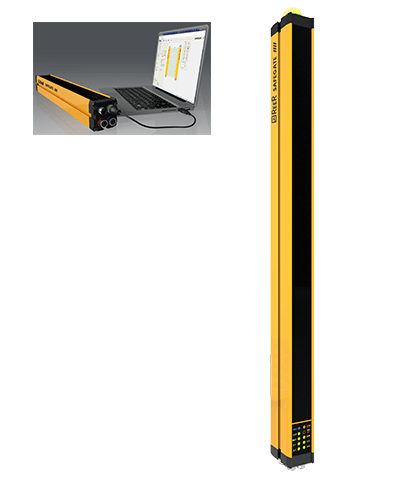

The SMPO 4B from ReeR is an access control detection safety light curtain with integrated muting, rated to Type 4 - SIL 3 - SILCL 3 - PL e - Cat. 4 with a maximum operating range of 12m.
- Controlled height of 989mm with 4 beams
- Compact 50 x 55mm cross section for space-constrained installations
- 2 Fail-safe PNP (400mA at 24VDC) with protection against short circuit, overload and reverse polarity
- User-selectable automatic or manual restart mode
- 5.5ms Response time for fast detection
- M12 5-pole male connector (emitter), M12 12-pole male connector (receiver), M12 5-pole female connectors (Muting sensors) M12 5-pole female connector (programming and external Muting lamp)
- Made in Italy by ReeR S.p.A.
$2,100.61
