UKS4000-G30-LI7L-Q12
M30 200-4000mm ANALOG 4-20mA ULTRASONIC
UKS4000-G30-LI7L-Q12
Out of stock

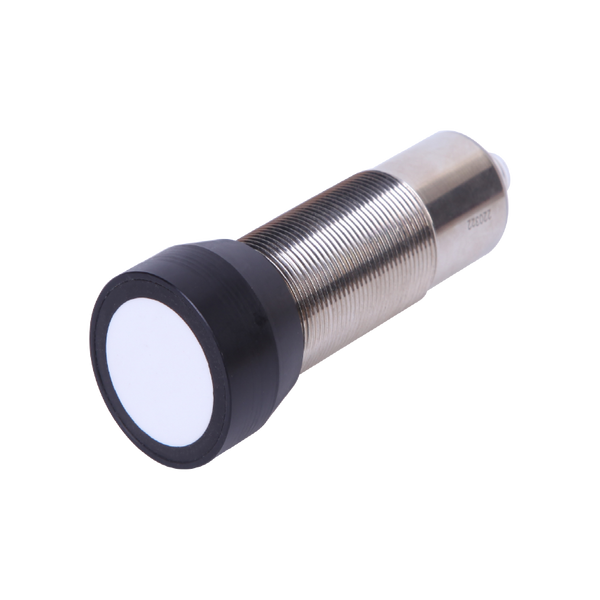

The UKS4000-G30-LI7L-Q12 from Elco Automation is a larger-bodied ultrasonic sensor in M30 threaded cylindrical housing, providing detection at up to 4m.
- 4m operating range with 200mm blind zone and 1mm resolution
- Analogue 4–20mA output on 15–30VDC supply
- 3Hz switching frequency — echo-pulse measurement rate for continuous distance sensing
- M12 plug, 4-pin connector for fast field termination and replacement
- Nickel-plated brass M30 × 100mm housing — robust in metal-rich and mildly aggressive plant environments
- IP67 protection and -25°C to +70°C operating range; CE, RoHS, REACH certified
$188.38
