UKS500-G18-LI7L-Q12
M18 40-500mm ANALOG 4-20mA ULTRASONIC
UKS500-G18-LI7L-Q12
Out of stock

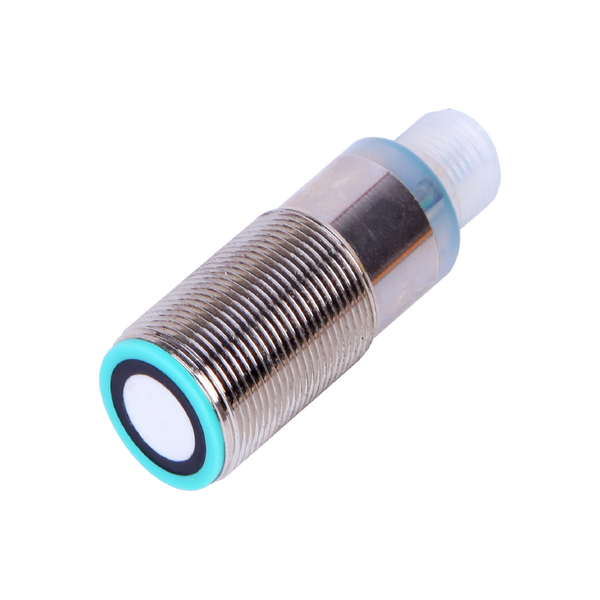

The UKS500-G18-LI7L-Q12 from Elco Automation is a standard-size ultrasonic sensor in M18 threaded cylindrical housing, providing detection at up to 500mm.
- 500mm operating range with 40mm blind zone and 0.17mm resolution
- Analogue 4–20mA output on 15–30VDC supply
- 20Hz switching frequency — echo-pulse measurement rate for continuous distance sensing
- M12 plug, 4-pin connector for fast field termination and replacement
- Nickel-plated brass M18 × 50.7mm housing — robust in metal-rich and mildly aggressive plant environments
- IP67 protection and -25°C to +70°C operating range; CE, RoHS, REACH certified
$178.73
