DS4-TW-01P-11
1in - 2out 0.2-4mm 32A DIN Rail grey
DS4-TW-01P-11

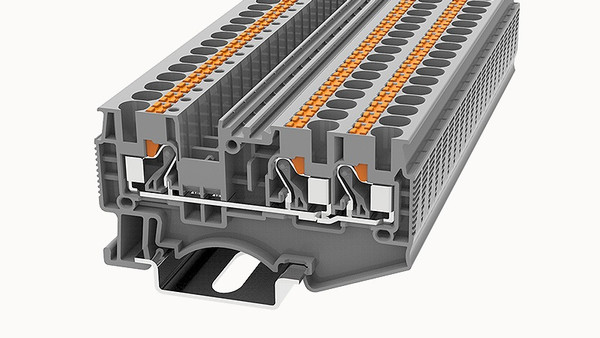

The Degson DS4-TW is a Multi-conductor (1-in 2-out) push-in DIN rail terminal block, rated at 32A with a conductor range of 0.2...4 mm². Wires terminate without tools - simply push the conductor directly into the terminal. An integrated release lever allows simple wire removal with a flat or Pozidriv screwdriver.
Key Features
- Tool-free push-in termination - wires push directly into terminal
- Integrated release lever - flat or star (Pozidriv) screwdriver activation, no contact with live parts
- Dual-channel bridging wells for 2-10 pole plug-in bridge connections (DFB series)
- Available in multiple colours (grey, blue, black, red) by varying order suffix
- DIN rail mount: NS35/7.5 and NS35/15
- Rated to 32A, 0.2...4 mm²
- Standards: IEC60947-7-1, UL 1059, TUV, CE
Applications
- Control panel and switchboard wiring
- Industrial automation and PLC cabinet wiring
- Motor control centres and distribution boards
- High-density panel wiring where tool-free installation is required
$2.23
