PCKK2.5-01P-11-00A(H)
Terminal 2.5mm² 24A Screw DIN Rail Double Level Grey
PCKK2.5-01P-11-00A(H)
In stock

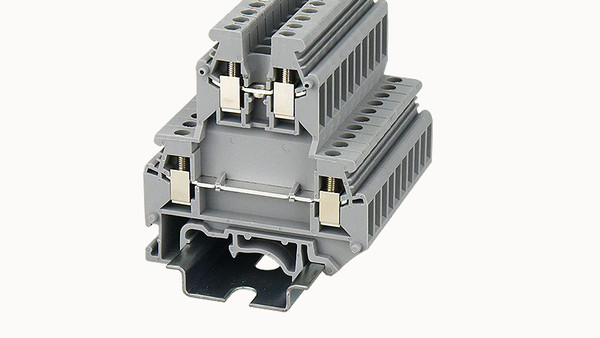

The Degson PCKK2.5 is a Two-tier (2-in 2-out) screw-connection DIN rail terminal block, rated at 24A with a conductor range of 0.2...2.5 mm². Utilises a one-piece thread system for stress-free connection and reconnection. Features a double-channel bridging design for 2-10 pole plug-in bridge connections (DFA series).
Key Features
- Universal screw connection - one-piece thread for stress-free termination and re-termination
- Double-channel bridging design accepts 2-10 pole plug-in bridge connections (DFA series)
- Compact dimensions - uniform design across series
- Available in multiple colours (grey, blue, black, red) by varying order suffix
- DIN rail mount: NS35/7.5 and NS35/15
- Rated to 24A, 0.2...2.5 mm²
- Standards: IEC60947-7-1/2
Applications
- Control panel and switchboard terminal wiring
- Industrial automation and PLC cabinet wiring
- Motor control centres and distribution boards
- Industrial machinery control wiring
$1.65
